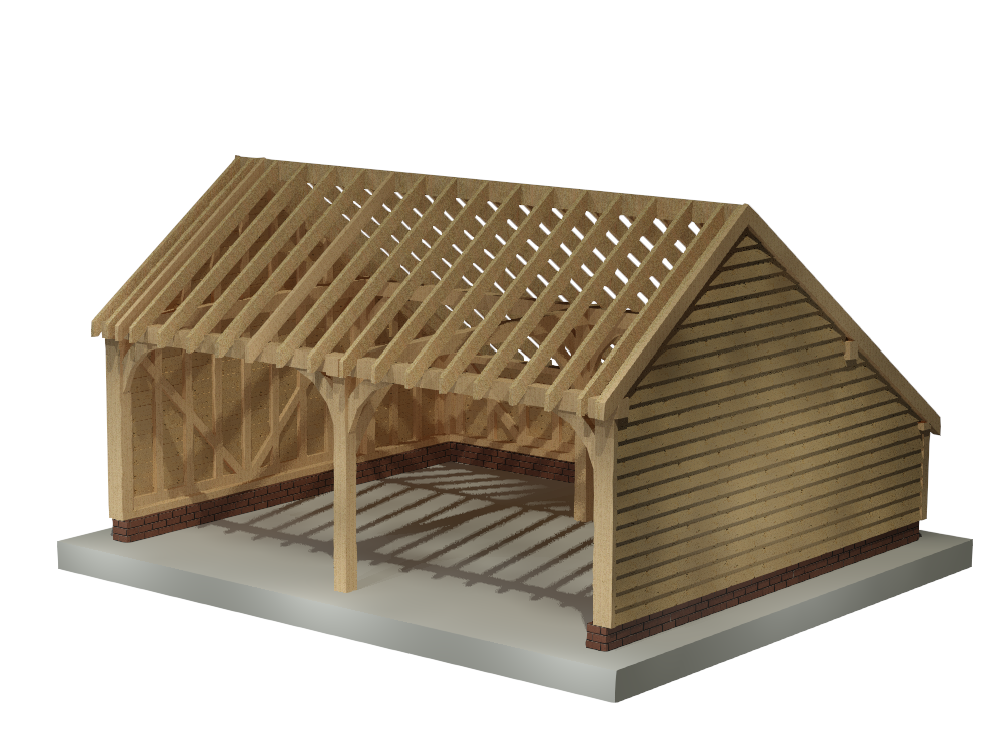

A FRAME
Our A frame garages can maintain a lower ridge height and have a more compact appearance thanks to its catslide roof.
The two bay variants are 6000mm wide x 5350mm deep with a ridge height of 3850mm approx.
The three bay variants are 8925mm wide x 5350mm deep with a ridge height of 3850mm approx.
The four bay variants are 11850mm wide x 5350mm deep with a ridge height of 3850mm approx.
A FRAME
Our A frame garages can maintain a lower ridge height and have a more compact appearance thanks to its catslide roof.
The two bay variants are 6000mm wide x 5350mm deep with a ridge height of 3850mm approx.
The three bay variants are 8925mm wide x 5350mm deep with a ridge height of 3850mm approx.
The four bay variants are 11850mm wide x 5350mm deep with a ridge height of 3850mm approx.

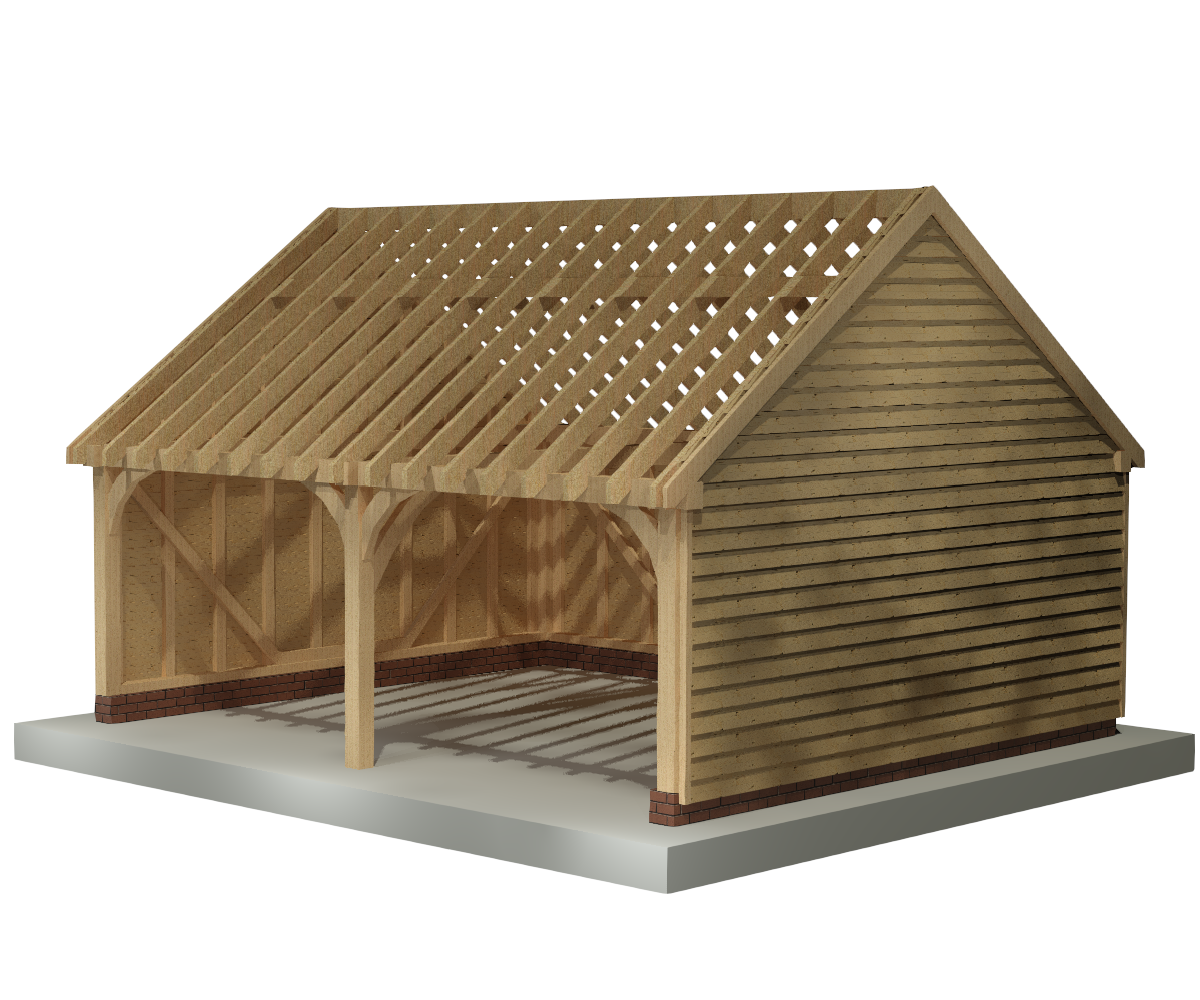

B FRAME
With a full height back frame and a higher ridge height, the B frames have the same depth as the A frame, allowing for the addition of a second floor if necessary.
The single bay with log-store variants are 4475mm wide x 5350mm deep with a ridge height of 3600mm approx.
The single bay variants minus log store are 3075mm wide x 5350mm deep with a ridge height of 3600mm approx.
The two bay variants are 6000mm wide x 5350mm deep with a ridge height of 4350mm approx.
The three bay variants are 8925mm wide x 5350mm deep with a ridge height of 4350mm approx.
The four bay variants are 11850mm wide x 5350mm deep with a ridge height of 4350mm approx.
B FRAME
With a full height back frame and a higher ridge height, the B frames have the same depth as the A frame, allowing for the addition of a second floor if necessary.
The single bay with log-store variants are 4475mm wide x 5350mm deep with a ridge height of 3600mm approx.
The single bay variants minus log store are 3075mm wide x 5350mm deep with a ridge height of 3600mm approx.
The two bay variants are 6000mm wide x 5350mm deep with a ridge height of 4350mm approx.
The three bay variants are 8925mm wide x 5350mm deep with a ridge height of 4350mm approx.
The four bay variants are 11850mm wide x 5350mm deep with a ridge height of 4350mm approx.

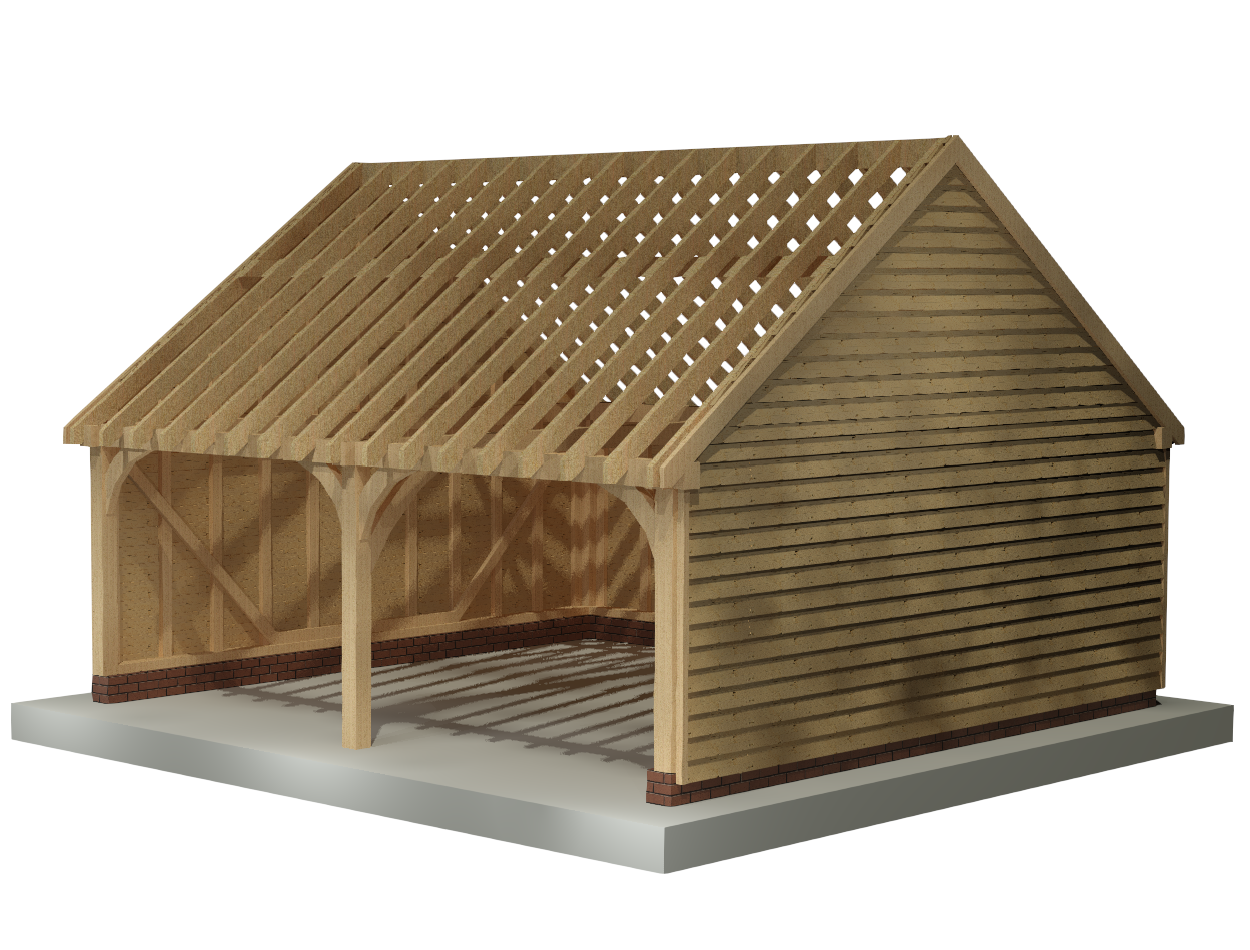

C FRAME
This is our largest frame offering maximum capacity and the ability to utilise a top floor if required. Our C-Frame garages are ideally suited to larger cars.
The two bay variants are 6000mm wide x 6000mm deep with a ridge height of 4600mm approx.
The three bay variants are 8925mm wide x 6000mm deep with a ridge height of 4600mm approx.
The four bay variants are 11850mm wide x 6000mm deep with a ridge height of 4600mm approx.
C FRAME
This is our largest frame offering maximum capacity and the ability to utilise a top floor if required. Our C-Frame garages are ideally suited to larger cars.
The two bay variants are 6000mm wide x 6000mm deep with a ridge height of 4600mm approx.
The three bay variants are 8925mm wide x 6000mm deep with a ridge height of 4600mm approx.
The four bay variants are 11850mm wide x 6000mm deep with a ridge height of 4600mm approx.

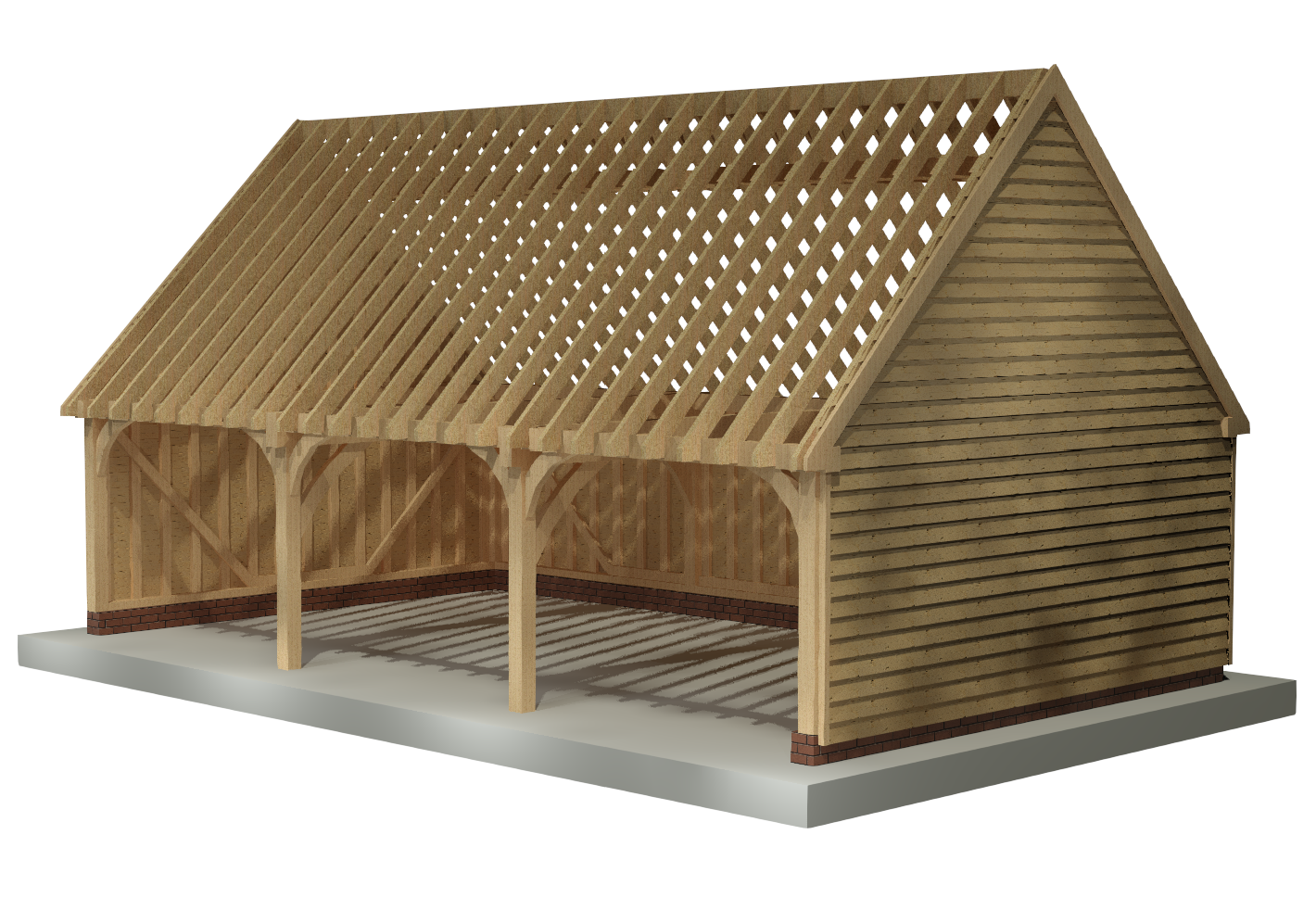

UPPER FLOOR B FRAME
The B frames Upper Floor has the same foot print as a standard B Frame but with a 45deg pitch, an increased Tie Beam size, 150 x 47 softwood floor joists and 18mm moisture-resistant chipboard flooring allowing for extra space above, access via a cutout.
With the addition of an external staircase and some dormer or velux windows, the perfect additional space can be created.
The
two bay B-Frame
is 6000mm wide x 5350mm deep with a ridge height of 5200mm approx.
The three bay B-Frame is 8925mm wide x 5350mm deep with a ridge height of 5200mm approx.
The four bay B-Frame is 11850mm wide x 5350mm deep with a ridge height of 5200mm approx.
UPPER FLOOR B FRAME
The B frames Upper Floor has the same foot print as a standard B Frame but with a 45deg pitch, an increased Tie Beam size, 150 x 47 softwood floor joists and 18mm moisture-resistant chipboard flooring allowing for extra space above, access via a cutout.
With the addition of an external staircase and some dormer or velux windows, the perfect additional space can be created.
The
two bay B-Frame
is 6000mm wide x 5350mm deep with a ridge height of 5200mm approx.
The three bay B-Frame is 8925mm wide x 5350mm deep with a ridge height of 5200mm approx.
The four bay B-Frame is 11850mm wide x 5350mm deep with a ridge height of 5200mm approx.
UPPER FLOOR C FRAME
The C frames Upper Floor has the same foot print as a standard C Frame but with a 45deg pitch, an increased Tie Beam size, floor joists and floor boarding allowing for extra space above.
With the addition of an external staircase and some dormer or velux windows, the perfect additional space can be created.
The
two bay C-Frame
is 6000mm wide x 6000mm deep with a ridge height of 5500mm approx.
The three bay C-Frame is 8925mm wide x 6000mm deep with a ridge height of 5500mm approx.
The four bay C-Frame is 11850mm wide x 6000mm deep with a ridge height of 5500mm approx.
UPPER FLOOR C FRAME
The C frames Upper Floor has the same foot print as a standard C Frame but with a 45deg pitch, an increased Tie Beam size, floor joists and floor boarding allowing for extra space above.
With the addition of an external staircase and some dormer or velux windows, the perfect additional space can be created.
The
two bay C-Frame
is 6000mm wide x 6000mm deep with a ridge height of 5500mm approx.
The three bay C-Frame is 8925mm wide x 6000mm deep with a ridge height of 5500mm approx.
The four bay C-Frame is 11850mm wide x 6000mm deep with a ridge height of 5500mm approx.
