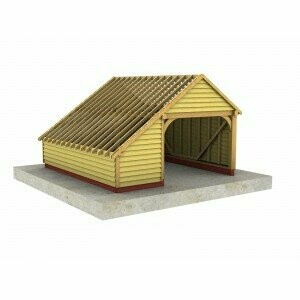

Our single bay B-Frame garages are the same depth as the A-Frame, but since the rafters pitch across the width of the barn, the ridge height is still below 4000mm, but giving a much more usable space due to the increased head height. The addition of an integral log store allows more room to open car doors without increasing the ridge height of the barn.

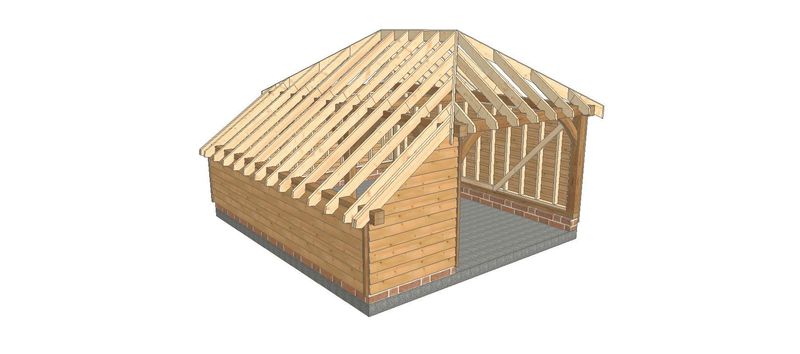

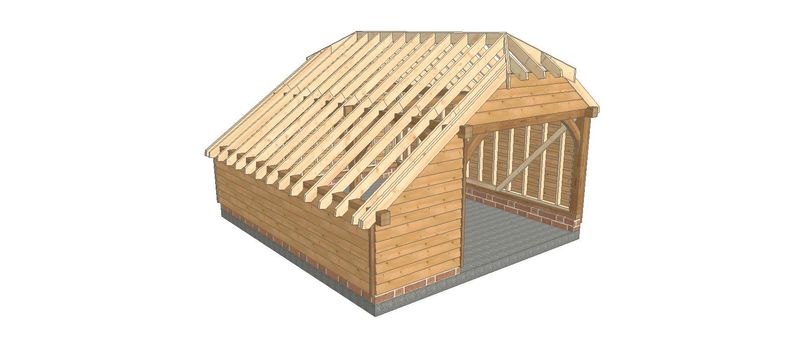

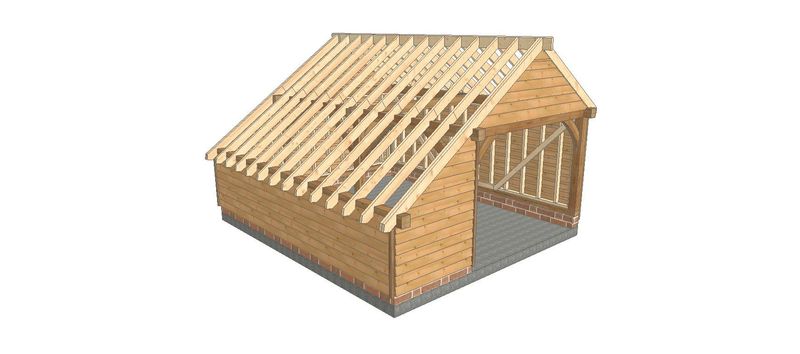

The single bay with log-store variants are 4475mm wide x 5350mm deep with a ridge height of 3600mm approx.

Kits to include:

150 x 150 Oak Posts
170 x 150 Oak Ties and Eaves Beams
150 x 75 Oak Rear-aisle Eaves Beam
150 x 75 Oak Soleplate
Ex 225 x 50 Oak Curved Braces
100 x 47 Studwork at 600mm centres
100 x 47 Rafters at 400mm centres
2-Ex 200 x 38 Softwood feather cladding

All our softwood is clear-treated with vacsol-aqua to prevent fungal and insect attack
