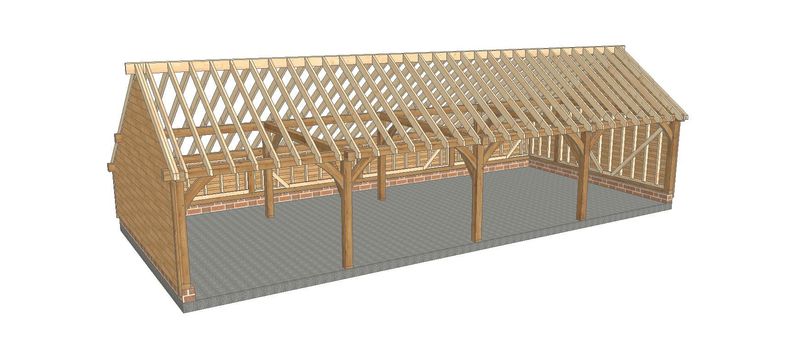

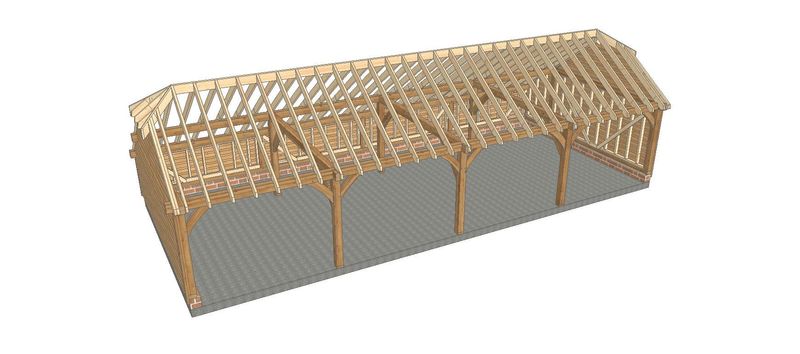

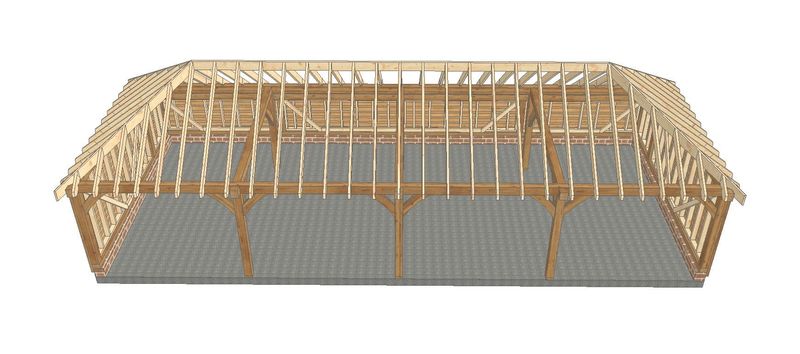

Our A-Frame garages have an integral rear aisle giving the advantage of added depth without increasing the ridge height of the building.

The four bay variants are 12350mm wide x 5350mm deep with a ridge height of 3850mm approx.

Kits to include:

150 x 150 Oak Posts
170 x 150 Oak Ties and Eaves Beams
150 x 75 Oak Rear-aisle Eaves Beam
150 x 75 Oak Soleplate
Ex 225 x 50 Oak Curved Braces
100 x 47 Studwork at 600mm centres
100 x 47 Rafters at 400mm centres
2-Ex 200 x 38 Softwood feather cladding

All our softwood is clear-treated with vacsol-aqua to prevent fungal and insect attack
