Overall Footprint = 6250mm wide x 6000mm deep

Ridge Height = 4600mm approx.

What is included?

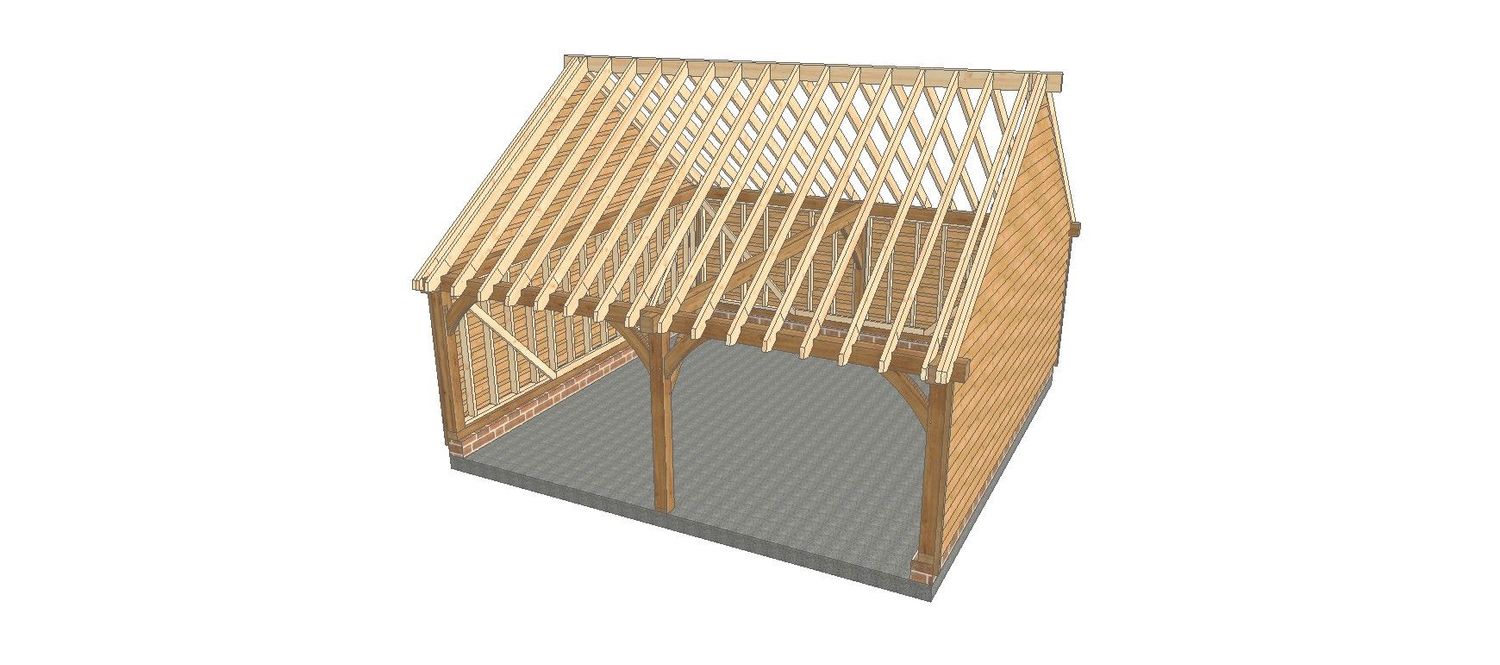

The kit includes the pre-joined oak frame with treated softwood studs, rafters and feather-edge cladding. It also includes all fixings required to assemble the kit, including stainless-steel nails for use in oak and collated nails for use in nail guns to install the rafters and cladding.
The kit comes with full assembly instructions and the rafters are pre-cut making them easy to install.

Engineering calculations for the oak frame will be supplied upon request and at no extra charge and are suitable for submitting to building regulations.

What is not included?

The kit does not include assembly, any groundwork's, bricks or roof covering materials (felt, battens and tiles). We advise using a 150mm wide brick, a standard 215mm wide brick wall is suitable. Delivery charges are also extra, and will be based on post code. If you want to arrange to collect your building, that is no problem.

Specification of parts:

150 x 150 Oak Posts
170 x 150 Oak Ties and Eaves Beams
150 x 75 Oak Rear-aisle Eaves Beam
150 x 75 Oak Soleplate
Ex 225 x 50 Oak Curved Braces
100 x 47 Studwork at 600mm centres
150 x 47 Rafters at 400mm centres
2-Ex 200 x 38 Softwood feather cladding

All our softwood is clear-treated with vacsol-aqua to prevent fungal and insect attack
